BK-T coin-operated telescope
产品详情




BAKA-T SERIES COIN-OPERATED TELESCOPE



Technical performance

1 Main optical performance

      Model

Item

BK-T 25x100

BK-T 40x100

Magnification

25×

40×

Objective
lens

diameter

φ100mm

φ100mm

Exit diameter

φ4mm

φ2.5mm

Eyes relief

14mm

8.2mm

Field of view

2°30′

1°30′

Interorbital distance

58~72mm

Resolution

≤2.4″

Diopter adjustment range

Fixed

2 Mechanical performance

Azimuth adjust range:0~340°

Pitch down angle range:0~45°

Pitch up angle range:0~45°

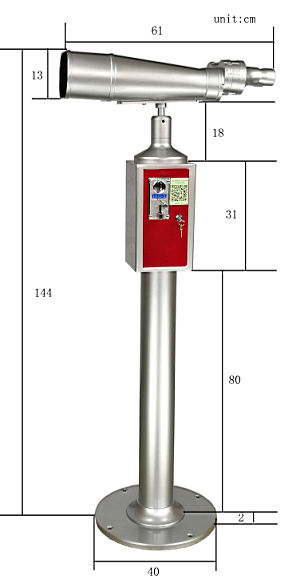

External package dimension(main body):

610mm(L)×250mm(W)×310mm(H)

Complete machine height:1440m

Over all unit weight:46kg

3 Electrical charact and performance

Power

DC4.5V,3Pcs AA(#5)Batteries (on it’s own)

Standing-by time

6 months

Continually working

Coin operated 100Pcs/day covering 5 months(limited by the electricity volume, coin amount)

diaphragm Open time

1-9999 seconds continually adjustable,factory set 60 seconds

Temperature of  environment

-25~+ 70

Humidity of environment

5%~95%

Useful coin diameter

23mm-28mm

The default coin value of ¥1 Yuan

In China

Useful coin thickness

1.2mm-3.0mm

Other Characteristics

1.ultra low power consumption,coin operated continually with time increasing automatically

2.It is needed to change the batteries as the “- -” flashing on the LCD, it displays lack of power.

3.The defaulted coin of which different with the coin Dia & thickness won’t recognized and accepted , please press the refund button to return coin.
